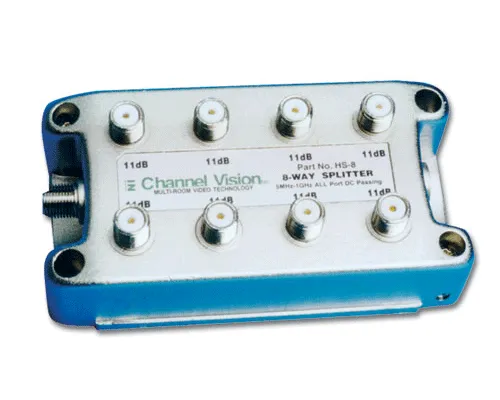

Channel Vision HS-8 8-Way Splitter/Combiner

The Channel Vision HS-8 splitter/comniner allows 8-way combining or splitting of TV antenna or cable signals. This splitter is DC passive allowing passage of low-voltage signals along the coax cable. This splitter is housed in a high quality casting.

Features:

• 8-Way Splitter / Combiner
• 1 GHz, DC pass all ports
• Bulk pack-poly bag
• Low insertion loss
• Machine threads
• Grounding screw

Technical Specifications

• Bandwidth:5-1000MHz
• Typ insertion loss: 11dB
• Max insertion loss @ 1000MHz:13dB
• RFI isolation: -120dB
• Return loss 50-1000MHz: >16dB
• Out to out isolation 50-1000MHz: >18.5dB
• DC resistance OUTPUT to IN: <.1ohms>
• Input/Output Connectors: F type female
• Max DC pass thru current: 500 mA
